Hot Rolling Equipment
Additional Equipment for Steel Handling and Cooling
We also manufacture steel handling and cooling equipment for specific material-transfer and finishing operations.

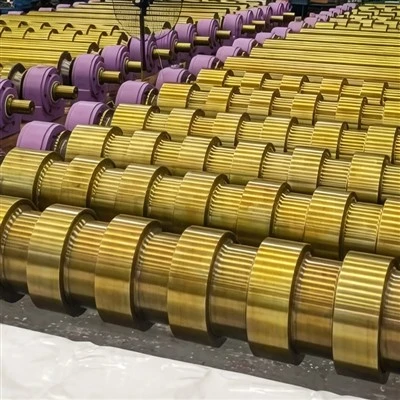

Roller Ball Conveyor Table
Available in transport roller and work roller configurations. The equipment supports continuous transfer of billets and rolled steel products. Roller maintenance provisions include nondestructive testing and repair welding, with the specified repair count controlled within 4–5 times.

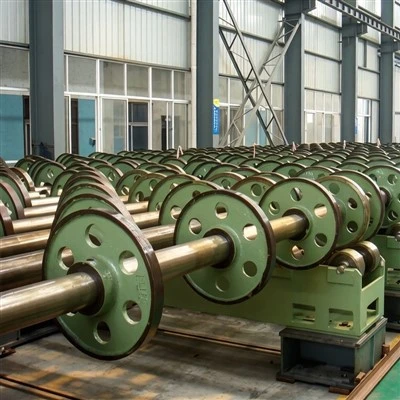

Industrial Cooling Bed
Available in disc-type and walking-type configurations. It is used for medium and heavy steel plate cooling sections, with independent motor drives. The structure can be manufactured according to production-line conditions and customer drawings or existing samples.

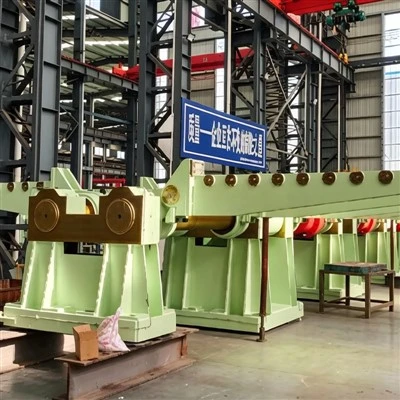

Heavy Plate Tilter
This equipment uses a double-arm crank-rocker mechanism driven by a motor and reducer. It provides 180° plate turnover and is designed for heavy plate finishing areas.

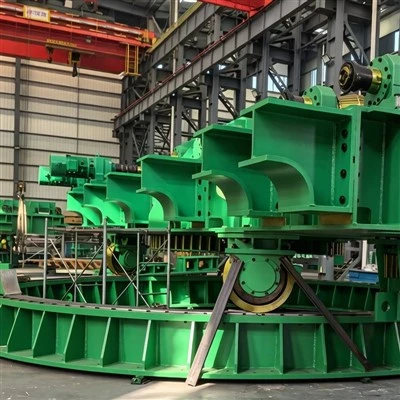

Industrial Rotary Table
The rotary table adopts a modular split structure consisting of seven core components. It is used to rotate billets, change material direction, and connect material-handling operations between production processes. The structure can be designed according to site conditions and project drawings.
-
Steel Billet TurntableManufactured within our specialized heavy equipment facility in Jingjiang, our Steel Billet Turntable is a heavy-duty material-handling unit engineered to rotate hot steel billets, blooms, and...read more
-
Motorized Roller ConveyorManufactured within our heavy metallurgical equipment workshop in Jingjiang, our Motorized Roller Conveyor is a heavy-duty industrial roller table system engineered for the longitudinal...read more
-
Steel Plate Turnover MachineEngineered and built at our specialized metallurgical machinery base in Jingjiang, our Steel Plate Turnover Machine is a heavy-duty mechanical handling unit installed in the finishing lines of...read more
-
Cooling Bed For Rolling MillManufactured at our Jingjiang metallurgical equipment production facility, our Cooling Bed For Rolling Mill is a heavy-duty material-handling system engineered to receive red-hot rolled steel...read more
-
Roller Ball Conveyor TableEquipment Use: Continuous conveying of steel billets and rolled productsread more
Product Categories: Transport roller, work roller
Roller Surface Treatment: Nondestructive testing, optimized... -
Industrial Cooling BedProduct Types: Disc-type cooling bed, walking-type cooling bedread more
Applicable Products: Medium and heavy plate, high-grade plate
Operating Focus: Reduced scratches, uniform cooling,... -
Heavy Plate TilterMain Function: 180° plate turning for full-surface inspectionread more
Structural Form: Double-arm crank rocker
Drive System: Motor reducer -
Industrial Rotary TableEquipment Structure : Split modular structure, seven core componentsread more
Production-Line Role: Logistics connection equipment for hot-rolling lines
Operating Conditions: High temperature,...
Hot Rolling Equipment for Different Production Processes
We manufacture the following hot rolling mill equipment for material handling and cooling operations in steel production lines:
| Equipment | Main Function | Application |
|---|---|---|
| Steel Billet Turntable | Rotates and repositions steel billets | Billet handling and direction changes |
| Motorized Roller Conveyor | Transports hot steel products | Steel mill conveying lines |
| Steel Plate Turnover Machine | Turns steel plates through 180° | Plate inspection and finishing |
| Cooling Bed For Rolling Mill | Cools rolled steel products | Rolling mill cooling sections |
| Roller Ball Conveyor Table | Supports and transfers steel products | Material transfer operations |
| Industrial Cooling Bed | Provides cooling for steel plates | Medium and heavy plate finishing |
| Heavy Plate Tilter | Turns heavy steel plates | Plate finishing and inspection |
| Industrial Rotary Table | Rotates and redirects materials | Production-line material handling |
Equipment Specifications and Selection
We offer different steel mill equipment configurations according to the dimensions, weight, temperature, and handling requirements of the steel products.
Steel Billet Turntable
Our Steel Billet Turntable handles square, rectangular, and round billets in hot rolling production lines.
| Parameter | Specification |
|---|---|
| Square billet size | 100 × 100–400 × 400 mm |
| Rectangular billet size | Up to 500 × 600 mm |
| Round billet diameter | Up to 500 mm |
| Billet length | 2,000–12,000 mm |
| Maximum billet weight per cycle | 25 metric tons |
| Rotation angle | 90°, 180°, or 360° |
| Rotation speed | 2–6 rpm |
| Billet temperature | 850–1,150°C |
| Rotation direction | Bidirectional |
The turntable can use electric or hydraulic rotation drives. Optional configurations include integrated motorized roller beds, water-cooled thermal protection, hydraulic clamping, and optical positioning sensors.
Motorized Roller Conveyor
Our motorized roller conveyor for steel mills is designed for transporting steel products between production processes.
| Parameter | Specification |
|---|---|
| Roller diameter | 150–650 mm |
| Roller body length | Up to 5,500 mm |
| Conveying speed | 0.2–18 m/s |
| Maximum load per roller table station | 60 metric tons |
| Roller materials | 42CrMo, 45# forged steel, centrifugal cast ductile iron, heat-resistant cast alloys |
| Roller surface hardness | 45–55 HRC for alloy hardfacing |
Available drive configurations include individual geared motor drives for each roller and grouped transmission through a common shaft with bevel gears.
Roller options include cylindrical rollers, conical rollers, and V-groove rollers. Additional configurations include alloy hardfacing, internal water-cooling channels, and modular frames.
Steel Plate Turnover Machine
Our steel plate turnover machine turns steel plates through 180° for plate handling, inspection, and finishing operations.
| Parameter | Specification |
|---|---|
| Plate thickness | 6–120 mm |
| Plate width | 1,200–5,200 mm |
| Plate length | Up to 25,000 mm with multi-arm synchronized configuration |
| Plate weight per cycle | 5–35 metric tons |
| Turnover angle | 180° |
| Turnover cycle | 20–45 seconds |
| Drive control | Variable-frequency drive |
The equipment uses a linkage mechanism for plate turnover. Contact surfaces can be configured with replaceable polyurethane, brass, or soft-alloy lining strips. Linkage geometry and multi-frame synchronization can be adjusted for the required plate dimensions and handling arrangement.
Cooling Bed For Rolling Mill
Our rolling mill cooling bed handles different rolled steel products after the rolling process.
| Parameter | Specification |
|---|---|
| Applicable products | Steel plates, bars, sections, and billets |
| Entry temperature | 850–1,050°C |
| Discharge temperature | ≤150°C |
| Maximum plate width | 5,000 mm |
| Maximum bar length | 120 m |
| Billet cross-section | 100 × 100–350 × 350 mm |
| Cooling bed length and width | Customized according to project requirements |
| Listed customized length range | 24 m to over 140 m |
Available cooling configurations include disc-type roller beds and walking-beam cooling beds. Options include adjustable walking-beam stroke, inlet and outlet roller tables, hydraulic side-shifting devices, plate positioning stops, and discharge chains.
Additional Equipment for Steel Handling and Cooling
We also manufacture steel handling and cooling equipment for specific material-transfer and finishing operations.
Roller Ball Conveyor Table
Available in transport roller and work roller configurations. The equipment supports continuous transfer of billets and rolled steel products. Roller maintenance provisions include nondestructive testing and repair welding, with the specified repair count controlled within 4–5 times.
Industrial Cooling Bed
Available in disc-type and walking-type configurations. It is used for medium and heavy steel plate cooling sections, with independent motor drives. The structure can be manufactured according to production-line conditions and customer drawings or existing samples.
Heavy Plate Tilter
This equipment uses a double-arm crank-rocker mechanism driven by a motor and reducer. It provides 180° plate turnover and is designed for heavy plate finishing areas.
Industrial Rotary Table
The rotary table adopts a modular split structure consisting of seven core components. It is used to rotate billets, change material direction, and connect material-handling operations between production processes. The structure can be designed according to site conditions and project drawings.
Customization and Production-Line Configuration
As a hot rolling equipment manufacturer, we configure equipment according to product dimensions, handling requirements, and installation conditions.
Available customization and configuration options include:
- Roller diameter, body length, roller material, and roller surface treatment.
- Cylindrical, conical, and V-groove roller designs.
- Electric or hydraulic rotation drives for billet turntables.
- Hydraulic clamping and optical positioning configurations.
- Plate turnover linkage geometry and replaceable contact linings.
- Disc-type or walking-beam cooling bed structures.
- Walking-beam stroke, hydraulic side-shifting devices, and positioning stops.
- Modular frames and equipment structures designed according to project drawings.
For production-line projects, we can also configure inlet and outlet roller tables, cooling equipment, and material-transfer units according to the required process arrangement.
Manufacturing and Project Support
We have been engaged in equipment manufacturing since 2000, with more than 350 employees and two subsidiaries.
Our engineering and technical teams support equipment development, mechanical design, and project-specific manufacturing. Our manufacturing scope covers metallurgical equipment and related mechanical components.
Our quality management and operational systems include ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and ISO 3834-2.
We provide technical consultation, project requirement analysis, customized equipment design, production progress updates, and after-sales follow-up.
Request a Hot Rolling Equipment Quotation
Send us your equipment requirements to obtain a suitable technical proposal and quotation.
You can provide your required equipment type, steel product dimensions, maximum workpiece weight, operating temperature, target conveying speed, or existing production-line drawings. If you have reference photographs, equipment drawings, or a quantity requirement, you can send those directly for our evaluation.
We will review the available information and discuss the appropriate equipment specifications and configuration for your project.
