Cold Rolling Equipment
Our Water Cooled equipment covers several steel rolling applications, including rebar Thermex quenching, TMT cooling, controlled rolling and water cooling for hot-rolled bars. Our Rebar Thermex Cooling System handles rebar diameters of Ø10–50 mm at rolling speeds of 6–45 m/s, while our TMT Cooling Section Box covers wire rod diameters of Ø5.5–25 mm and rebar or round bar diameters of Ø10–50 mm.
We manufacture different cooling equipment configurations to suit steel products, rolling speeds and production line requirements.
-
Gas Fired Radiant TubesManufactured within our specialized high-alloy casting and machining workshops in Jingjiang, our Gas Fired Radiant Tubes are indirect-heating combustion tube assemblies engineered for...read more
-
Hearth RollManufactured in our specialized metallurgical casting and machining facilities in Jingjiang, our Hearth Roll is a high-temperature centrifugally cast furnace roll engineered to support and convey...read more
-

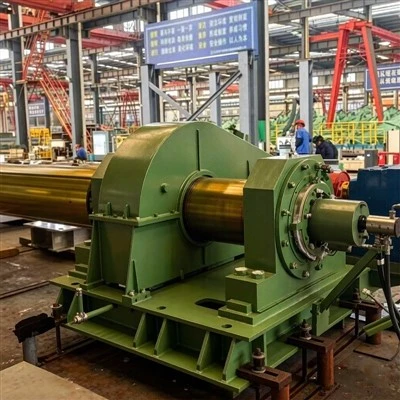

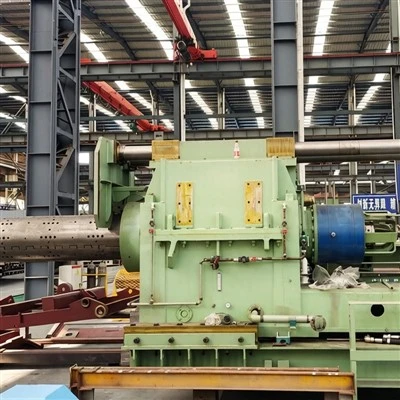

Recoiler MachineManufactured within our heavy metallurgical machinery facility in Jingjiang, our Recoiler Machine is an industrial-duty tension coiler system engineered to tightly wind cold- and hot-rolled steel...read more
-

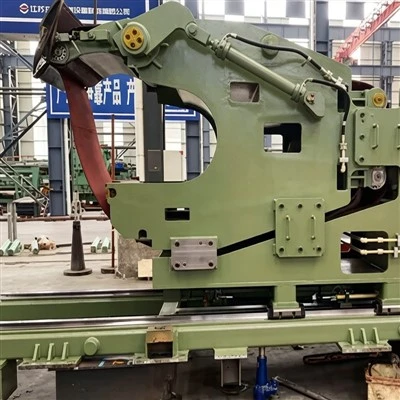

Belt WrapperManufactured within our specialized cold-rolling auxiliary equipment workshops in Jingjiang, our Belt Wrapper is an automated coil-threading machine engineered to assist in winding the leading...read more
-
Vertical Accumulator LooperEngineered and built at our specialized metallurgical machinery complex in Jingjiang, our Vertical Accumulator Looper is a heavy-duty strip accumulator tower engineered for continuous strip...read more
-
Strip Steering Guide RollerManufactured at our precision metallurgical equipment base in Jingjiang, our Strip Steering Guide Roller is an electro-hydraulic tracking and position-correction roller unit engineered to maintain...read more
-
Tension Bridle RollManufactured within our specialized metallurgical equipment workshop in Jingjiang, our Tension Bridle Roll is a precision web-tensioning roller unit engineered for continuous strip processing...read more
-

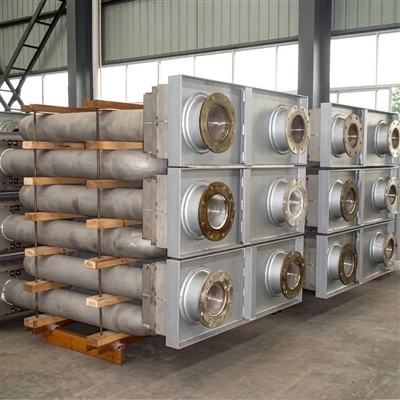

Radiation Furnace TubeProduct Type: Straight, U, W, O typeread more
Outer Tube Material: ZG4Cr25Ni20Si2 heat-resistant steel
Process: Centrifugal casting
Installation: Online... -

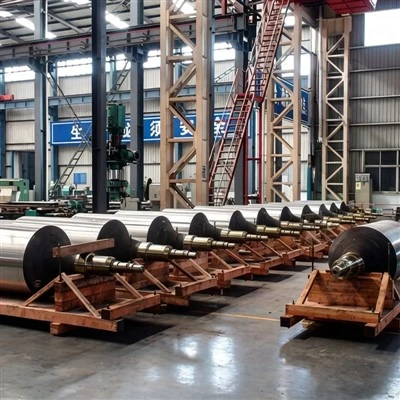

Furnace RollerOperating Temperature: Stable operation at 950°Cread more
Surface Process: Centrifugal casting + ceramic coating
Surface Hardness: ≥60HRC
Surface Roughness: Ra0.8 -

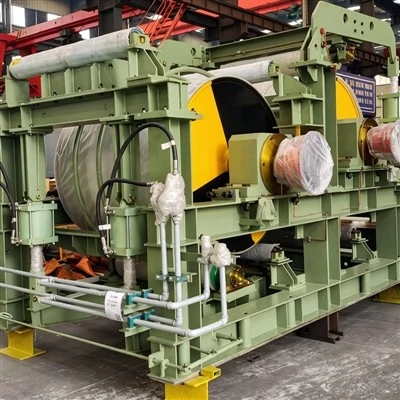

Roller Chain TensionStructure: Multi-roll combination with entry / exit roll groupsread more
Drive Options: Single-roll motor / hydraulic motor / gear differential interconnection
Core Functions: Tension... -

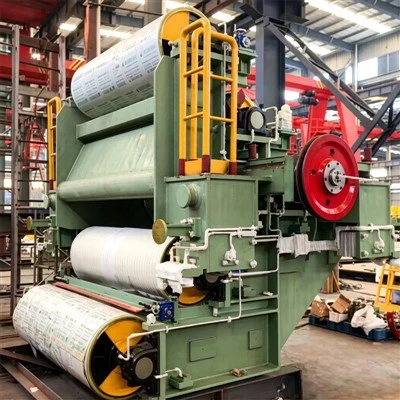

Looper Unit EquipmentMain Structure: Looper frame assembly, traveling mechanism, lifting jack deviceread more
Power System: Hydraulic components + AC variable-frequency drive motor
Control System: PLC control +... -

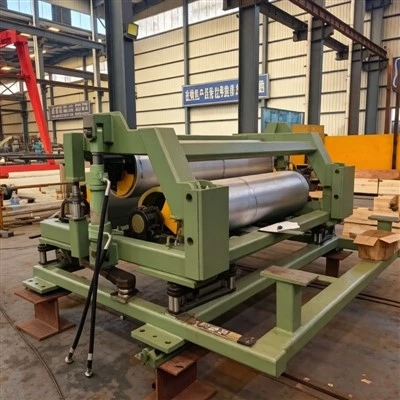

Automatic Tracking RollerCore Use: Strip tracking, centering, rolling accuracy controlread more
Main Components: Roller body, swing seat, actuator, detection probe
Detection Method: Photoelectric /...
1. Water Cooling Equipment for Different Steel Rolling Processes
Our Water Cooled product range includes:
- Rebar Thermex Cooling System: Online water quenching after the finishing mill, followed by self-tempering using residual heat from the steel core. Designed for rebar production lines.
- TMT Cooling Section Box: Intermediate and final cooling for high-speed wire rod, rebar, alloy steel bars and special steel bars. Used for controlling finishing rolling and laying temperatures.
- Controlled Rolling and Cooling Water Tank: Controls finishing rolling temperature and spinning temperature in high-speed wire rod production lines.
- Water Cooling Device: Water cooling equipment for hot-rolled rebar and bar steel, using residual-heat quenching and self-tempering.
Each equipment type serves a different process position and cooling requirement.
2. Technical Specifications and Equipment Selection
Rebar Thermex Cooling System
| Parameter | Specification |
|---|---|
| Applicable rebar diameter | Ø10–50 mm |
| Rolling speed | 6–45 m/s |
| Dynamic working water pressure | 0.8–2.5 MPa |
| Typical cooling water demand | 300–1,800 m³/h |
| Steel temperature before cooling | 980–1,050°C |
| Equalizing temperature at cooling bed | 580–680°C |
| Martensitic/tempered layer depth | 8%–12% of rebar radius |
| Yield strength | 420–620+ MPa |
| Rm/ReL | ≥1.25 |
| Agt | ≥9.5% |
| Manifold material | 304/316L stainless steel |
Applicable steel grades and standards listed for this system include HRB400E, HRB500E, BS 4449 B500B, CS2:2012 and ASTM A615 Gr 60/75/80.
The system supports single-strand and multi-strand rolling configurations, including 2-strand, 3-strand and 4-strand splitting mills.
TMT Cooling Section Box
| Parameter | Specification |
|---|---|
| Cooling box length | 8–10 m modular sections |
| Rolling speed | 5–115 m/s |
| Wire rod diameter | Ø5.5–25 mm |
| Rebar and round bar diameter | Ø10–50 mm |
| Water flow per box | 50–450 m³/h |
| Working water pressure | 0.6–2.5 MPa |
| Outlet temperature control accuracy | ±10°C |
| PLC | Siemens S7-300 |
| Industrial computer | Advantech |
| Non-wearing components | 304/316L stainless steel |
| Wear-resistant guides | Cemented carbide or hardened alloy |
The cooling box uses modular sections and replaceable internal nozzle inserts. This allows nozzle maintenance without replacing the entire nozzle body.
Controlled Rolling and Cooling Water Tank
Designed for high-speed wire rod rolling lines, this equipment provides finishing rolling temperature and spinning temperature control.
Available configuration information includes:
- Compatibility options for Morgan 5th- and 6th-generation, SMS and Danieli nozzle systems.
- Siemens S7-300 PLC control.
- Industrial computer-based monitoring.
- Quick-install nozzles.
No universal nozzle interchangeability is assumed; nozzle dimensions and installation arrangements are matched to the selected equipment configuration.
Water Cooling Device
Designed for hot-rolled rebar and bar steel, this equipment uses residual-heat quenching followed by self-tempering.
The disclosed process produces a martensitic surface layer and a fine-grained sorbite core.
Detailed diameter, water pressure, flow rate and rolling speed specifications are not published for this model and are confirmed according to the specific equipment design.
3. Cooling Configuration and Control Options
Our equipment configurations address different cooling and production line requirements.
Rebar Thermex Cooling System
- CNC-drilled stainless steel spray manifolds.
- Heavy-duty electric sliding rail base.
- Quick-lifting split covers.
- Independent manifolds for multi-strand rolling.
- Independent pressure gauges.
- Manual or electric flow regulating valves.
- Adjustable nozzle convergence angles and cooling chamber length.
TMT Cooling Section Box
- Replaceable internal nozzle inserts.
- Pneumatic three-way bypass valve.
- Splash-proof stainless steel covers.
- Multi-stage labyrinth water barriers.
- Low-level drainage.
- Closed-loop proportional control.
- PLC and industrial computer control.
The pneumatic bypass valve has a specified switching response of 0.1 seconds during steel head and tail passage.
4. Custom Water Cooling Equipment for Existing Rolling Lines
We provide equipment configurations based on production line layouts, steel specifications and customer technical requirements.
| Equipment | Customizable items or configurations |
|---|---|
| Rebar Thermex Cooling System | Cooling chamber length, nozzle convergence angle, manifold arrangement, strand configuration and manual or electric flow adjustment |
| TMT Cooling Section Box | Modular cooling box arrangement, nozzle inserts and control system |
| Controlled Rolling and Cooling Water Tank | Nozzle system selection and installation arrangement |
| Water Cooling Device | Equipment design based on customer drawings, samples and site operating conditions |
For multi-strand rebar production, independent manifolds and flow regulation can be configured for individual strands.
For existing wire rod lines, nozzle installation arrangements can be matched to the selected cooling system configuration.
5. Water Cooling Equipment Manufacturing and Quality Inspection
We manufacture metallurgical equipment through material processing, precision machining, assembly and finished equipment inspection.
Our water cooling equipment incorporates inspection procedures specific to each product configuration.
Rebar Thermex Cooling System
- 100% hydraulic pressure testing of each manifold module.
- Pressure testing at 1.5 times working pressure for 30 minutes.
- Heat-number QR code material traceability.
- Factory testing of sliding rails and limit switches.
TMT Cooling Section Box
- Hydraulic pressure testing at 1.5 times working water pressure.
- Nozzle hydraulic flow uniformity testing.
- PLC control logic testing.
- Valve response time and instrumentation checks.
- Factory loop testing of the control system.
For controlled rolling and cooling water tanks, complete factory inspection and third-party inspection are available.
Our manufacturing and engineering operations are supported by a group with more than 350 employees, including 98 technical personnel, and dedicated subsidiaries for metallurgical machinery manufacturing and installation engineering.
We also provide standard manufacturing and small-batch, high-precision non-standard equipment manufacturing.
6. Project Supply and After-Sales Support
We support equipment supply for new rolling mill projects and existing production line modifications.
Available project services include:
- Equipment manufacturing according to agreed technical drawings.
- Production progress updates.
- Factory inspection.
- Third-party inspection for applicable equipment.
- Installation and engineering support through our group installation resources.
For the TMT Cooling Section Box, the published project terms include:
- Manufacturing period:Typically 3–4 months after drawing approval.
- Warranty: 18 months after arrival or 12 months after commercial operation, whichever comes first.
- Payment: 30% advance payment, 40% at the manufacturing milestone and 30% before export shipment.
These terms apply to the stated TMT equipment offering and should not be assumed to apply automatically to other models.
7. Request a Water Cooling Equipment Quotation
Send us your existing rolling mill specifications, equipment drawings, sample photos or required equipment quantity.
Our engineering team can review the available information and prepare a suitable water cooling equipment configuration for your steel product and production line.
Contact us with your project requirements to discuss technical specifications, equipment configuration and quotation.
We are one of the most professional cold rolling equipment manufacturers and suppliers in China, also support customized service. With abundant experience, we warmly welcome you to buy durable cold rolling equipment from our factory. If you have any enquiry about pricelist, please feel free to email us.
