Jiangsu Dongfang Whole-Set Equipment Manufacturing Group Co., Ltd. manufactures cold rolling equipment for steel strip widths of 600–2,200 mm and coil weights of 5–35 metric tons, with maximum recoiling speeds of up to 900 m/min. Our cold rolling equipment range also covers belt wrappers, accumulator loopers, tension bridle rolls, and strip steering guide rollers for continuous strip processing lines.

As a China-based industrial equipment manufacturer and supplier, we manufacture different equipment configurations for strip coiling, head wrapping, accumulation, tension control, and strip guiding, with mechanical and drive options available for different production line arrangements.


  • Rebar Thermex Cooling System
    Adding micro-alloys like vanadium or niobium to a heat just to meet Grade 60 or seismic yield specs adds thousands of dollars per shift to melt shop operating costs. We build the Rebar Thermex...
    read more
  • Tmt Cooling Section Box
    Manufactured within our specialized rolling mill auxiliary equipment base in Jingjiang, our Tmt Cooling Section Box is an inline water-quenching cooling header system engineered for high-speed...
    read more

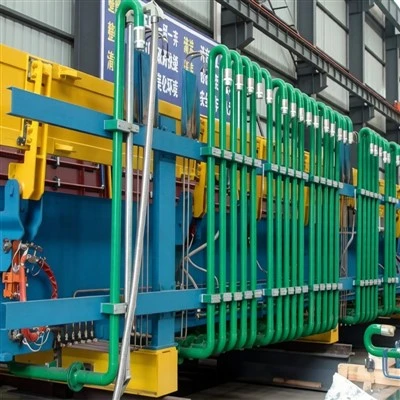

  • Controlled Rolling and Cooling Water Tank
    Compatible Nozzles: Morgan 5th/6th generation, SMS, Danieli, etc.
    Control System: Siemens S7-300 PLC + industrial computer
    Core Function: Final rolling temperature / spinning...
    read more

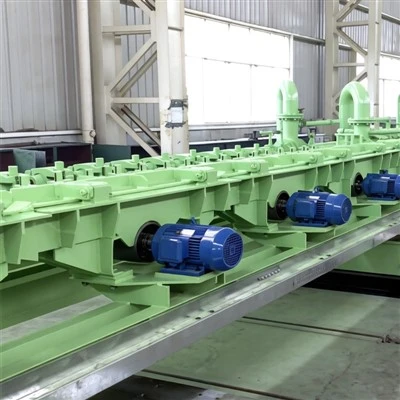

  • Water Cooling Device
    Material Processed: Hot rolled rebar, bar steel
    Process Principle: Residual heat quenching + self-tempering
    Main Effect: Raise strength, plasticity, toughness
    Structure...
    read more


Recoiler Machine: Strip Specifications and Configuration

Our industrial steel strip recoiler machines are designed for steel strip coiling, with three mandrel configurations and optional hydraulic auxiliary equipment.

Parameter Available specification
Strip thickness 0.15–12.0 mm
Strip width 600–2,200 mm
Coil weight 5–35 metric tons
Standard coil ID Ø508 mm or Ø610 mm
Coil OD 800–2,200 mm
Maximum recoiling speed Up to 900 m/min
Maximum recoiling tension Up to 350 kN
Drive Vector AC/DC motor drive control

Available mandrel configurations:

  • Solid mandrel
  • Four-wedge expansion mandrel, wedge angle α = 7°45′
  • Eight-wedge octagonal expansion mandrel

Optional hydraulic equipment includes:

  • External support bearing door
  • Hydraulic chuck
  • Coil unloading car
  • EPC lateral shifting device
  • Top pinch roll
  • Hydraulic push-off plate

The mandrel and auxiliary equipment can be selected according to coil specifications and unloading requirements.

Belt Wrapper: Automatic Strip Head Wrapping

Our automatic steel strip belt wrapper wraps the leading end of steel strip around an expanded recoiler mandrel before full-speed coiling begins.

The strip head is wrapped around the mandrel for an initial 4–5 turns. Once sufficient frictional grip is established, the belt wrapping mechanism withdraws, allowing the recoiler to accelerate to the production line speed.

An optical sensor or motor-current monitoring can be used to determine when the initial wrapping process is complete.

Parameter Available specification
Strip width 600–2,000 mm
Strip thickness 0.15–3.0 mm
Matching mandrel diameter Ø508 mm, Ø610 mm, or customized expansion mandrel
Threading speed 0.5–3.0 m/s
Belt width Typically 800–2,200 mm

Three mechanical configurations are available:

  • Horizontal traveling type with floor-mounted carriage
  • Swinging type
  • Vertical lifting type

The movement mechanism can use a hydraulic cylinder or an electric geared motor with linear guide rails. Belt materials include oil-resistant and heat-resistant polyurethane or rubber composites.

Guide baffles and quick belt replacement structures are also available.

Steel Strip Accumulator Looper for Continuous Strip Processing

Our steel strip accumulator looper equipment is intended for continuous processing lines where strip storage is required during coil changing or unloading operations.

The Vertical Accumulator Looper is applicable to:

  • Pickling lines
  • Continuous galvanizing lines (CGL)
  • Continuous annealing lines (CAL)

Its published mechanical arrangement includes a vertical tower frame, counterweight traveling carriage, fixed roller groups, and movable roller groups.

The Looper Unit Equipment range also includes hydraulic lifting components, horizontal movement mechanisms, AC variable-frequency motor drives, and PLC-based position and tension detection modules.

These configurations support strip accumulation and release during production interruptions at the entry or exit sections.

Storage capacity, tower dimensions, maximum operating speed, and rated load are not specified in the available product information.

Steel Strip Tension Control and Strip Steering Guide Rollers

Our steel strip tension control and steering equipment is designed for applications in cold rolling, pickling, continuous galvanizing, and continuous annealing lines.

Tension Bridle Roll

Configuration Available options
Roller arrangement 2-roll, 3-roll, or 4-roll
Drive Independent AC vector motor or differential gearbox
Strip wrapping S-wrap arrangement
Tension detection Load Cell configuration available
Roller surface Different surface coating options

The roller arrangement and drive configuration can be selected according to the required tension-control arrangement.

Strip Steering Guide Roller

Our strip steering guide roller equipment offers different detection and actuation configurations.

Available detection options:

  • Optical edge detection
  • Inductive edge detection
  • Ultrasonic detection

Available mechanical and actuation options:

  • Single-roll or double-roll frames
  • Hydraulic servo cylinder
  • Linear electric actuator

The Automatic Tracking Roller range also uses photoelectric or ultrasonic detection with closed-loop tracking control to correct strip deviation.

China Cold Rolling Equipment Factory and Custom Manufacturing

Jiangsu Dongfang Whole-Set Equipment Manufacturing Group Co., Ltd. operates a cold rolling equipment manufacturing facility in Jingjiang, Jiangsu, China.

Our production facilities cover raw material storage, precision machining, equipment assembly, finished-product inspection, and logistics preparation.

Our group has more than 350 employees, including 98 technical personnel. Our manufacturing capabilities cover standardized production as well as small-batch, high-precision, and non-standard equipment manufacturing.

Available custom cold rolling equipment configurations include:

  • Recoiler mandrel structures and hydraulic auxiliary equipment
  • Belt wrapper movement mechanisms and belt materials
  • Looper mechanical arrangements and drive components
  • Bridle roll numbers and transmission configurations
  • Strip steering detection and actuator arrangements

Our engineering and manufacturing teams work with equipment requirements and project specifications to determine suitable configurations.

We also provide pre-sales consultation, production progress updates, manufacturing coordination, and after-sales follow-up services.

Other Equipment for Continuous Annealing Lines

Our metallurgical equipment range also includes radiation furnace tubes and furnace rollers.

Radiation furnace tubes are available in straight, U-shaped, W-shaped, and O-shaped configurations. They are manufactured from ZG4Cr25Ni20Si2 heat-resistant steel using centrifugal casting and are designed for online replacement.

Furnace rollers are manufactured using centrifugal casting with ceramic coating. Published specifications include a stable operating temperature of 950°C, surface hardness of at least 60 HRC, and surface roughness of Ra0.8.

These products serve heat-treatment furnace applications and are supplied as separate equipment categories within our metallurgical equipment range.

Request a Cold Rolling Equipment Quotation

Send us your available strip specifications, existing equipment drawings, product photos, or required equipment quantities.

Our team can review the information and provide an equipment configuration and quotation based on your processing requirements.

Whether you need a recoiler, belt wrapper, accumulator looper, tension bridle roll, or strip steering guide roller, contact us with your available project information to discuss your equipment requirements.
